Krispin Wandel Jingchuan Wang Hesheng Wang

Faithful Feature Upsampling for Vision Transformers

model = torch.hub.load(
    "krispinwandel/vit-up",
    "vit_up_dinov3_splus",
    pretrained=True,
    trust_repo=True,
).eval()

query_features = model(pixel_values, query_coords)
GitHub arXiv Try in Colab Discuss on Discuna

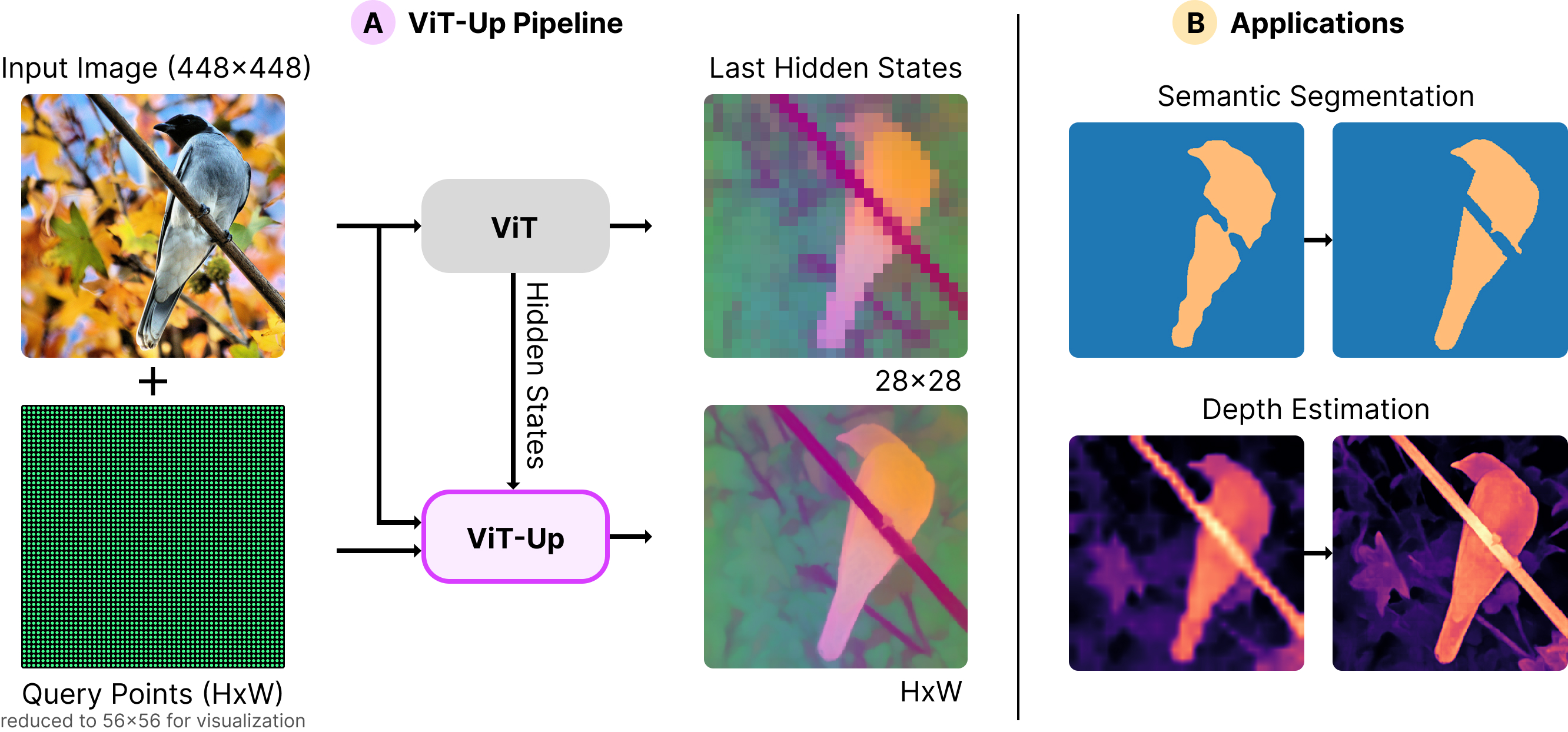

ViT-Up model overview figure
ViT-Up is an implicit feature upsampler for Vision Transformers that predicts backbone-aligned features at arbitrary continuous image coordinates.
65.41Cityscapes mIoU+2.07 vs. best baseline
55.44SPair-71k PCK@0.10+4.17 vs. best baseline
62.72COCO depth δ1+0.55 vs. best baseline
80.81NAVI PCK@0.10+0.50 vs. best baseline

Method

ViT-Up builds query features from intermediate ViT hidden states, reducing feature leakage while preserving alignment with the backbone feature space.

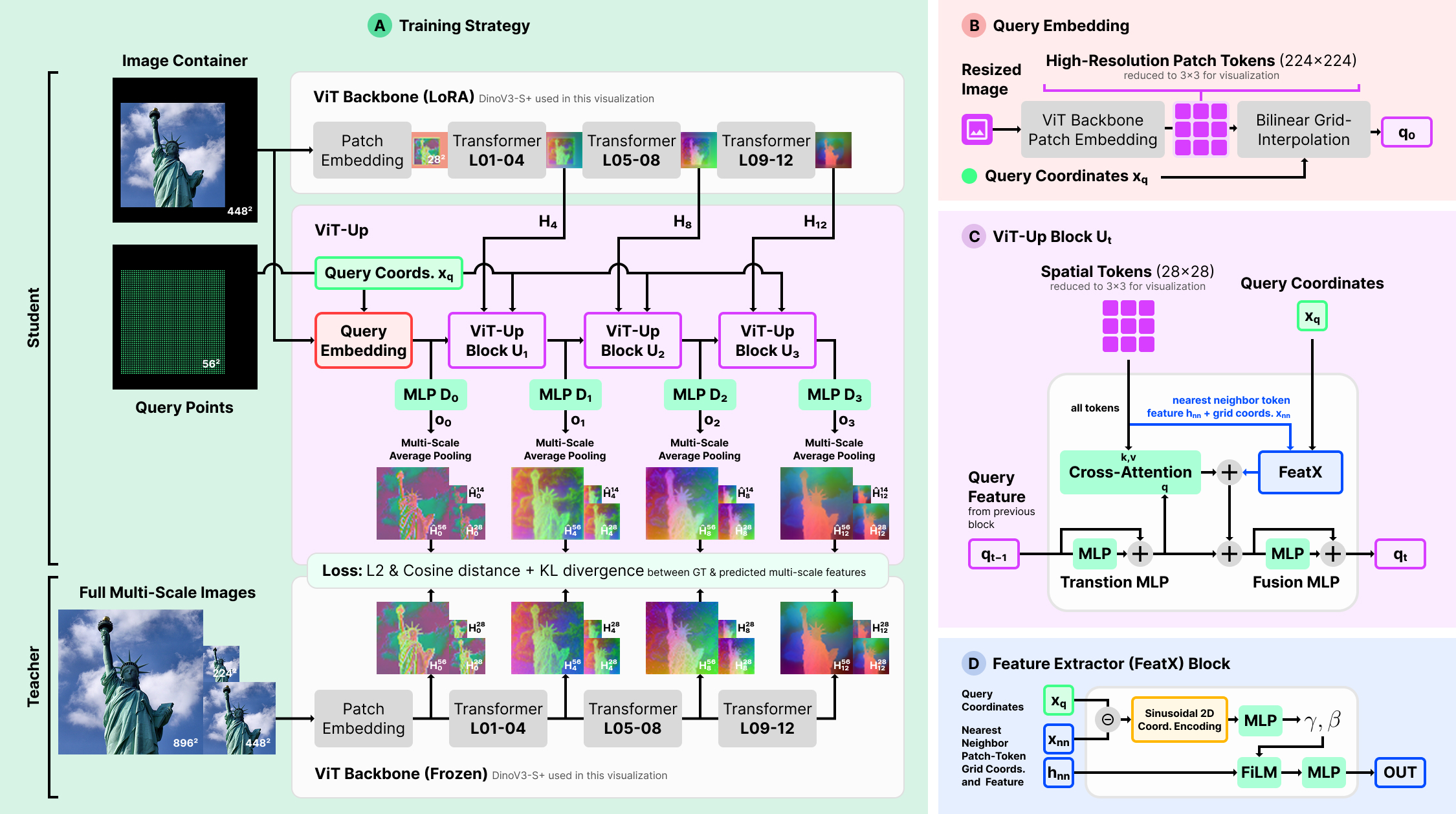

ViT-Up architecture diagram
Training uses frozen multi-resolution ViT teacher features to supervise the student model; query embeddings are refined through ViT-Up blocks that combine token-level cross-attention with sub-token FeatX modulation.

Result Highlights

Across dense prediction and correspondence benchmarks, ViT-Up consistently improves over state-of-the-art image-guided upsamplers, with gains up to +2.07 mIoU on Cityscapes and +4.17 PCK@0.10 on SPair-71k using DINOv3-S+.

Best semantic segmentation gain
+2.07
Cityscapes mIoU
Best depth improvement
+1.33
COCO RMSE reduction
Best semantic correspondence gain
+5.11
SPair-71k PCK@0.05
Best geometric correspondence gain
+0.50
NAVI PCK@0.10

Probing gains vs. best baseline

COCO mIoU
+0.23
VOC mIoU
+1.63
ADE mIoU
+0.49
City mIoU
+2.07
Depth d1
+0.55
Depth RMSE
+1.33

Correspondence gains vs. best baseline

SPair .10
+4.17
SPair .05
+5.11
SPair .01
+3.47
NAVI .10
+0.50
NAVI .05
+0.41
NAVI .01
+0.25

Qualitative Analysis

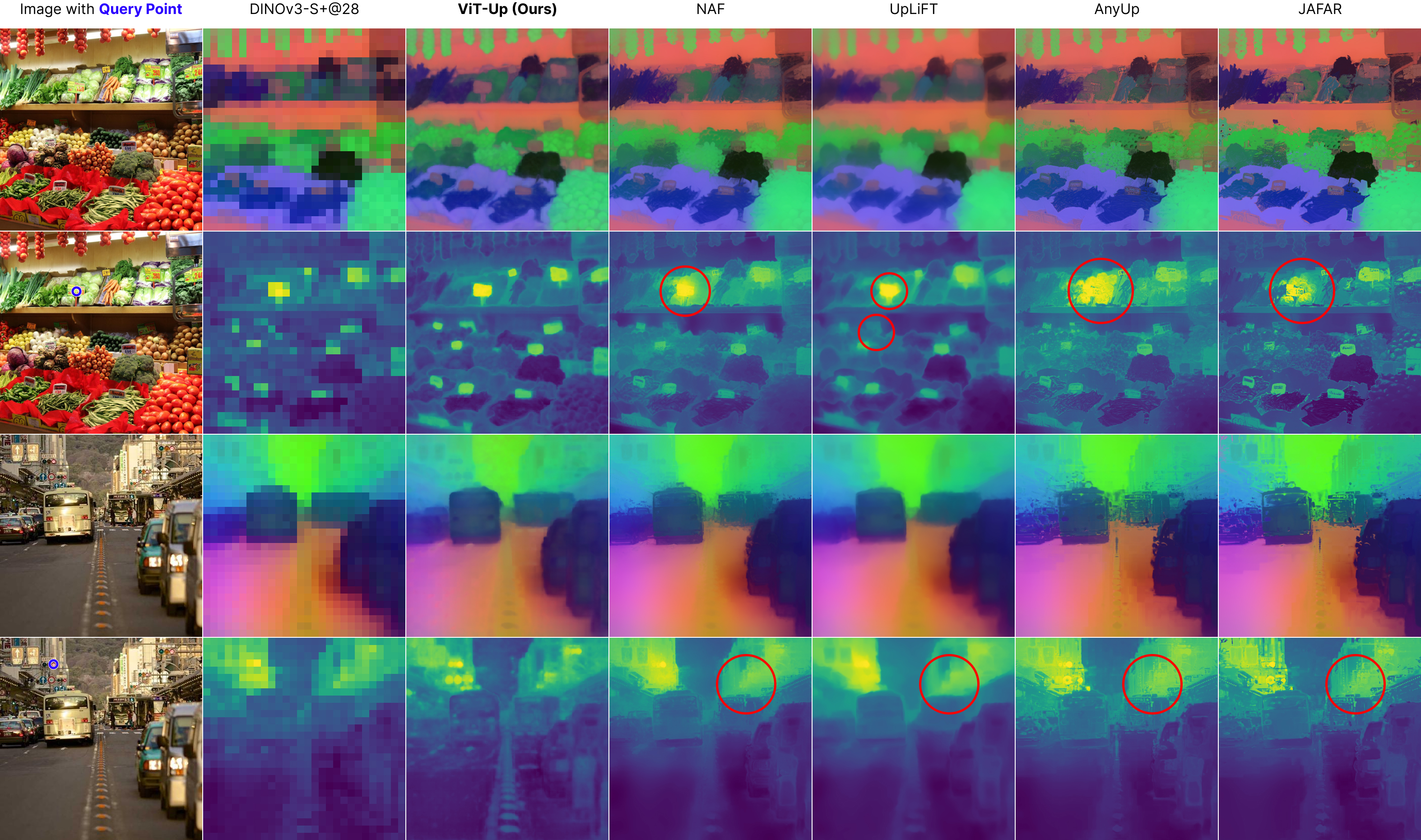

Qualitative comparison of feature upsampling methods on DINOv3-S+
Qualitative comparison of feature upsampling methods on DINOv3-S+. All methods use a 448 x 448 input image; the native backbone produces a 28 x 28 feature grid, and upsampled feature maps are shown at 448 x 448 output resolution. We show two examples: a vegetable-store scene in the top two rows and a traffic scene in the bottom two rows. For each example, the top row visualizes the feature structure using PCA, including the input image, the original 28 x 28 backbone feature map, and the upsampled feature maps produced by ViT-Up, NAF, UpLiFT, AnyUp, and JAFAR. The bottom row shows the corresponding query-based similarity maps, including the input image with the query point encircled in blue, the similarity map obtained from the low-resolution backbone features, and the similarity maps obtained from the upsampled features of each method. ViT-Up produces coherent PCA structures and semantically selective similarity maps that remain aligned with the queried region. In contrast, NAF, AnyUp, and JAFAR can produce visually sharp but fragmented feature maps with leakage into nearby structures, while UpLiFT tends to produce smoother features and weaker similarity responses for small semantic regions.

Dense Probing

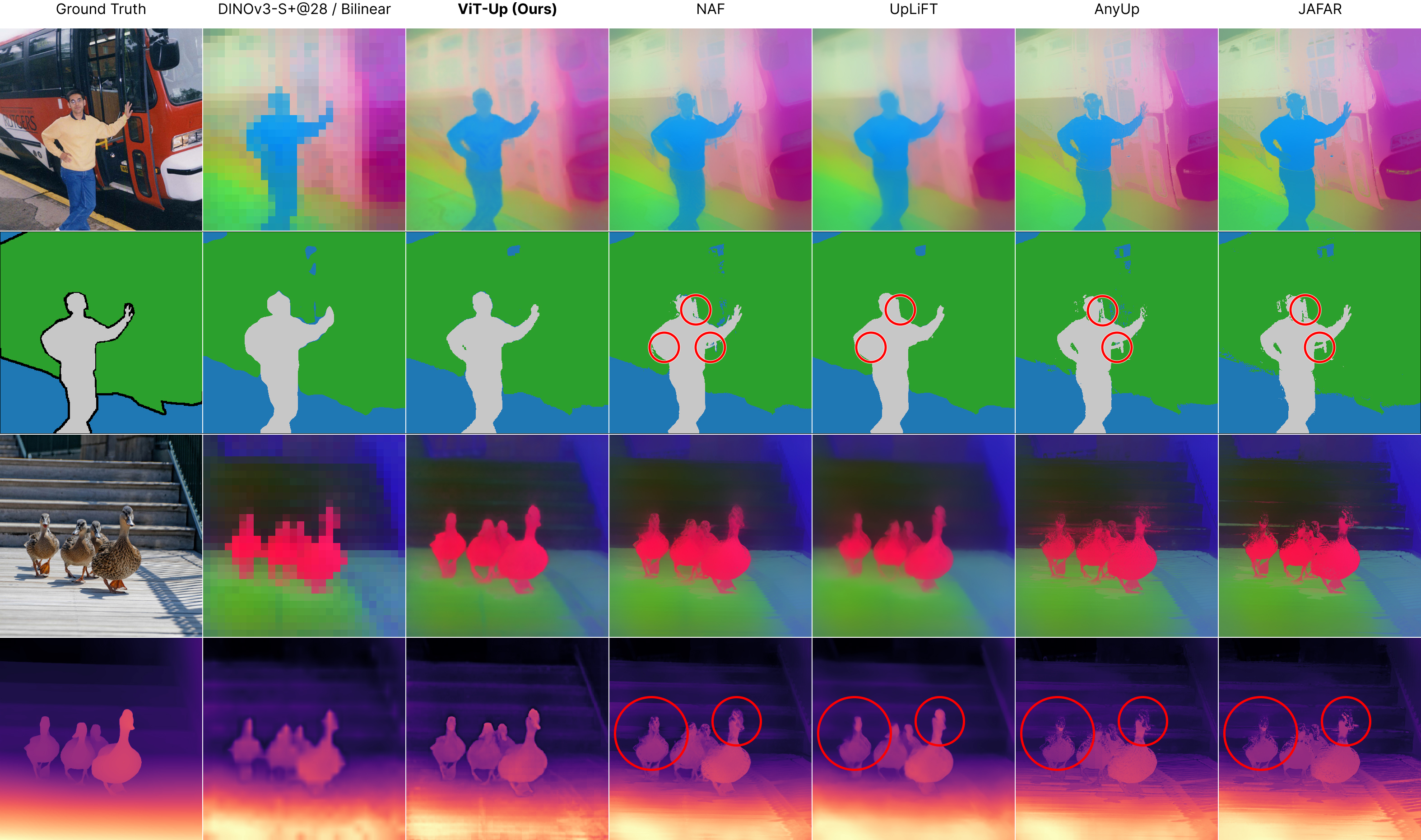

Qualitative dense probing results on DINOv3-S+
Qualitative dense probing results on DINOv3-S+. All methods use a 448 x 448 input image; the native backbone produces a 28 x 28 feature grid, and dense predictions are shown at 448 x 448 output resolution. Top two rows: semantic segmentation example with a person in front of a bus, showing PCA projections of the dense features and the corresponding predicted segmentation masks together with the ground-truth mask on the left. Bottom two rows: monocular depth example with a group of ducks, showing PCA projections of the dense features and the corresponding predicted depth maps together with the pseudo-depth target on the left generated by Depth Anything V2. For the bilinear baseline, we visualize PCA on the original 28 x 28 backbone feature grid. NAF, AnyUp, and JAFAR produce visually sharp but fragmented feature maps and noisy dense predictions. UpLiFT produces more localized but blurrier features, weakening fine structures such as the person's head region and small distant ducks. ViT-Up produces more coherent dense features, resulting in cleaner segmentation masks and more consistent depth estimates.

Probing results on DINOv3-S+. Higher is better for mIoU, accuracy, and delta1; lower is better for RMSE.

Method COCO Seg. VOC ADE20K Cityscapes COCO Depth
mIoU ↑Acc ↑ mIoU ↑Acc ↑ mIoU ↑Acc ↑ mIoU ↑Acc ↑ δ1 ↑RMSE ↓
Bilinear63.1081.8584.8896.4543.2776.1761.3693.4461.5262.80
JAFAR62.5081.5083.8896.1642.4875.8157.7892.4760.6464.92
AnyUp63.0381.8384.5496.3442.7776.0258.9692.9361.6662.62
UpLiFT63.7982.2885.6996.7244.2476.7163.0893.9461.8461.79
NAF63.8682.3385.8496.7244.1776.6963.3494.1362.1761.15
ViT-Up (Ours)64.0982.4987.4797.1444.7377.0665.4194.7362.7259.82
Gain vs. best baseline+0.23+0.16+1.63+0.42+0.49+0.35+2.07+0.60+0.55+1.33

Correspondence

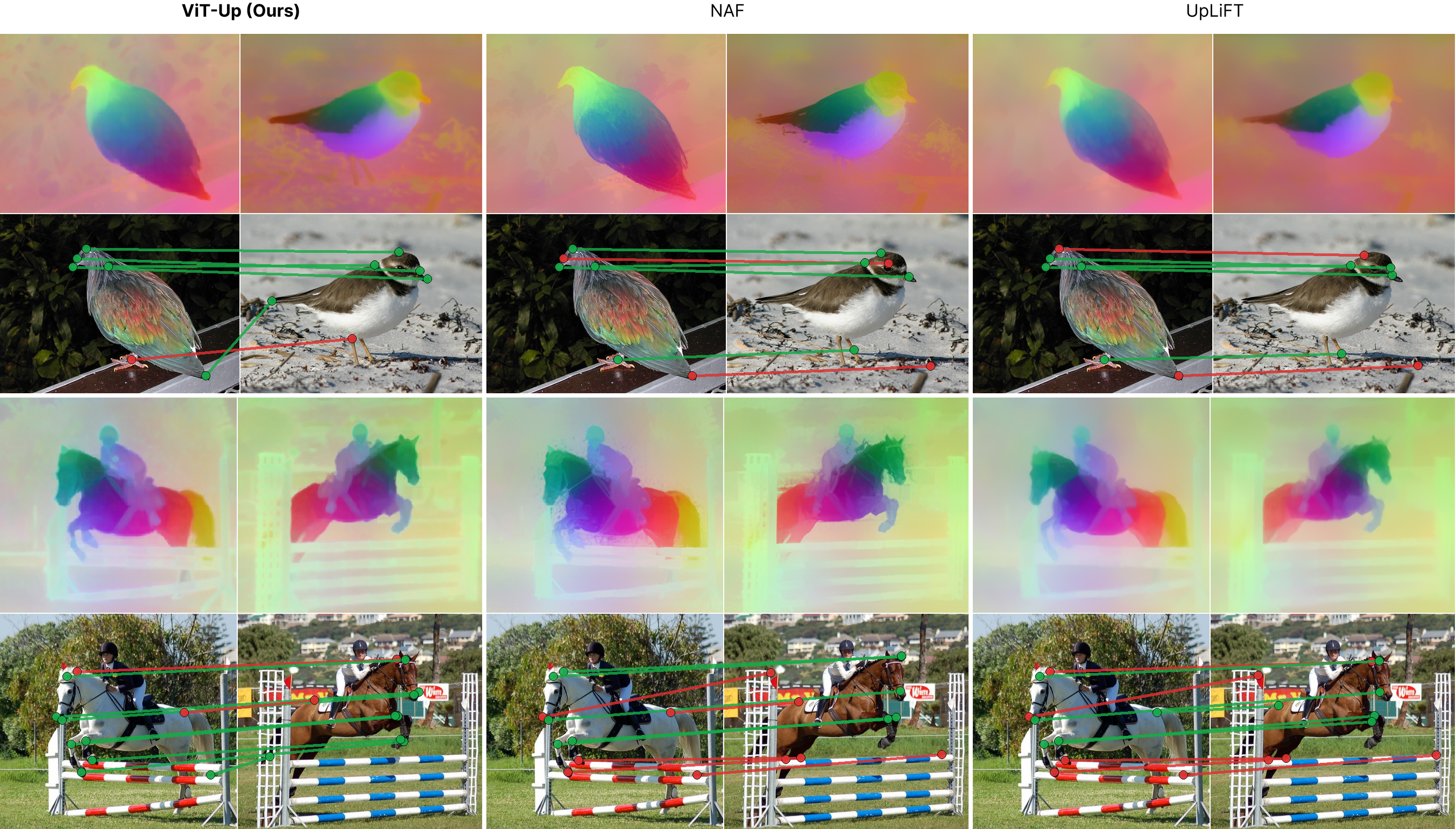

Qualitative semantic correspondence results on SPair-71k
Qualitative semantic correspondence results on SPair-71k. We show two image pairs, birds in the top two rows and horses in the bottom two rows. For each pair, the first row shows PCA projections of the dense features, and the second row shows correspondences obtained by matching each source query point to the target location with maximum cosine similarity. Green lines indicate correct matches under the SPair-71k threshold, while red lines indicate incorrect matches. ViT-Up produces fine-grained object features and accurate part-level correspondences. NAF and UpLiFT suffer from feature fragmentation or blurring in small structures such as the bird tail and the partially occluded horse tail, leading to incorrect matches.

Correspondence results on DINOv3-S+. PCK is reported at different tolerance thresholds; higher is better for all metrics.

Method SPair-71k NAVI
0.10 ↑0.05 ↑0.01 ↑ 0.10 ↑0.05 ↑0.01 ↑
Bilinear51.2733.743.8380.1651.1833.58
JAFAR36.8218.591.8979.0447.0226.60
AnyUp37.6319.311.9780.3148.7828.37
UpLiFT46.8729.153.4379.3549.0530.49
NAF48.6833.962.8980.0350.2931.62
ViT-Up (Ours)55.4439.077.3080.8151.5933.83
Gain vs. best baseline+4.17+5.11+3.47+0.50+0.41+0.25

People

Krispin Wandel

Krispin Wandel

Krispin Wandel received the M.Sc. degree in computational science and engineering from ETH Zurich, Zurich, Switzerland. He is currently pursuing the Ph.D. degree with the Department of Automation, Shanghai Jiao Tong University, Shanghai, China, under the supervision of Prof. Hesheng Wang. His research interests include visual representation learning, dense prediction, semantic correspondence, and robotics.

Jingchuan Wang

Jingchuan Wang

Jingchuan Wang received the Ph.D., M.Phil. and B.Eng. degree in Control Theory and Control Engineering from the Shanghai Jiao Tong University (SJTU), Shanghai, China, in 2002, 2005 and 2014, respectively. Now, he is a Professor in the School of Automation and Intelligent Sensing, and Institute of Medical Robotics at SJTU. He is also an IEEE senior member. His research interests include service robot, mobile robot's localization and navigation.

Hesheng Wang

Hesheng Wang

Hesheng Wang (Senior Member, IEEE) received the B.Eng. degree in electrical engineering from the Harbin Institute of Technology, Harbin, China, in 2002, and the M.Phil. and Ph.D. degrees in automation and computer-aided engineering from the Chinese University of Hong Kong, Hong Kong, in 2004 and 2007, respectively. He is currently a Distinguished Professor with the School of Automation and Intelligent Sensing, Shanghai Jiao Tong University, Shanghai, China. His research interests include visual servoing, intelligent robotics, computer vision, and autonomous driving. Dr. Wang is an Associate Editor of Robotic Intelligence and Automation and the International Journal of Humanoid Robotics, a Senior Editor of the IEEE/ASME Transactions on Mechatronics, and Editor-in-Chief of Robot Learning. He served as an Associate Editor of IEEE Transactions on Robotics from 2015 to 2019 and IEEE Transactions on Automation Science and Engineering from 2021 to 2023. He was the General Chair of IEEE/RSJ IROS 2025, IEEE ROBIO 2022, and IEEE RCAR 2016.
